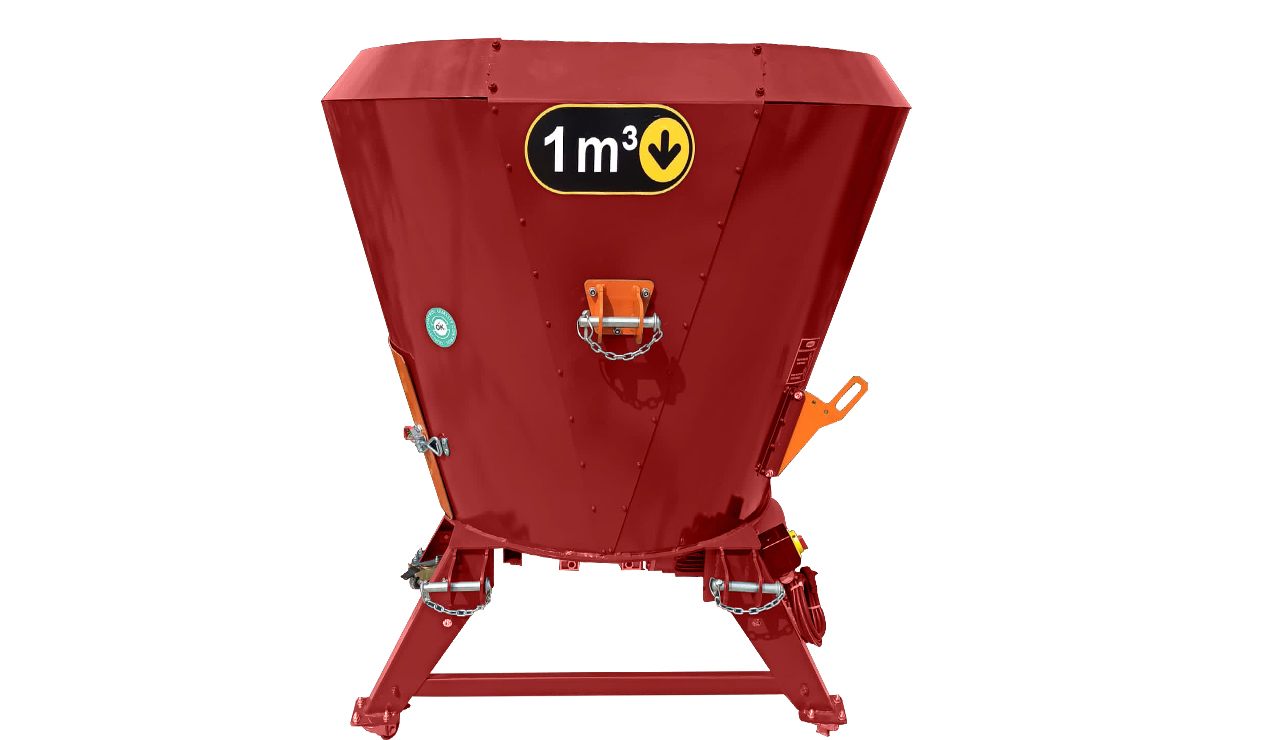

The Small Feed Mixer Models are Starting from 0.75 m³ Up to 3.5 m³.
0.75 m³ and 1.0 m3 models are available to be operated with 220 Volt Energy.
1.2 m³ and bigger models are available with 380 Volt ( 3 Phase ) Electric Energy.
Very low operation timing. The Mini Feed Mixer is designed ForMinimise the time of Feed preparation and for a perfect mixing.
HOMOGENEOUS MIXTURE.
Mini Feed Mixers have high quality transmissions, designed auger and blades,
optimum performance hydraulic system ( Optional ). Movable by Tractor by
3 Points Attachments, Also Movable by self Wheels. In Case of Electricity outage,
The operation can be continuous with a minimum HP tractor.
EASY MOVE
Trailed Mini TMR Wagons can be operated WİTH OR WİTHOUT Electric Power and WITH OR WITHOUT Tractor Power. Mini Feed Mixer with Frequency inverter gives you total control. The inverter provide extremely precise electrical motor control, speeds can be ramped up and down, and maintained, at speeds required; doing so utilizes only the energy required, rather than having a motor run at constant (fixed) speed and utilizing an excess of energy.
VARIETY OPERATION.

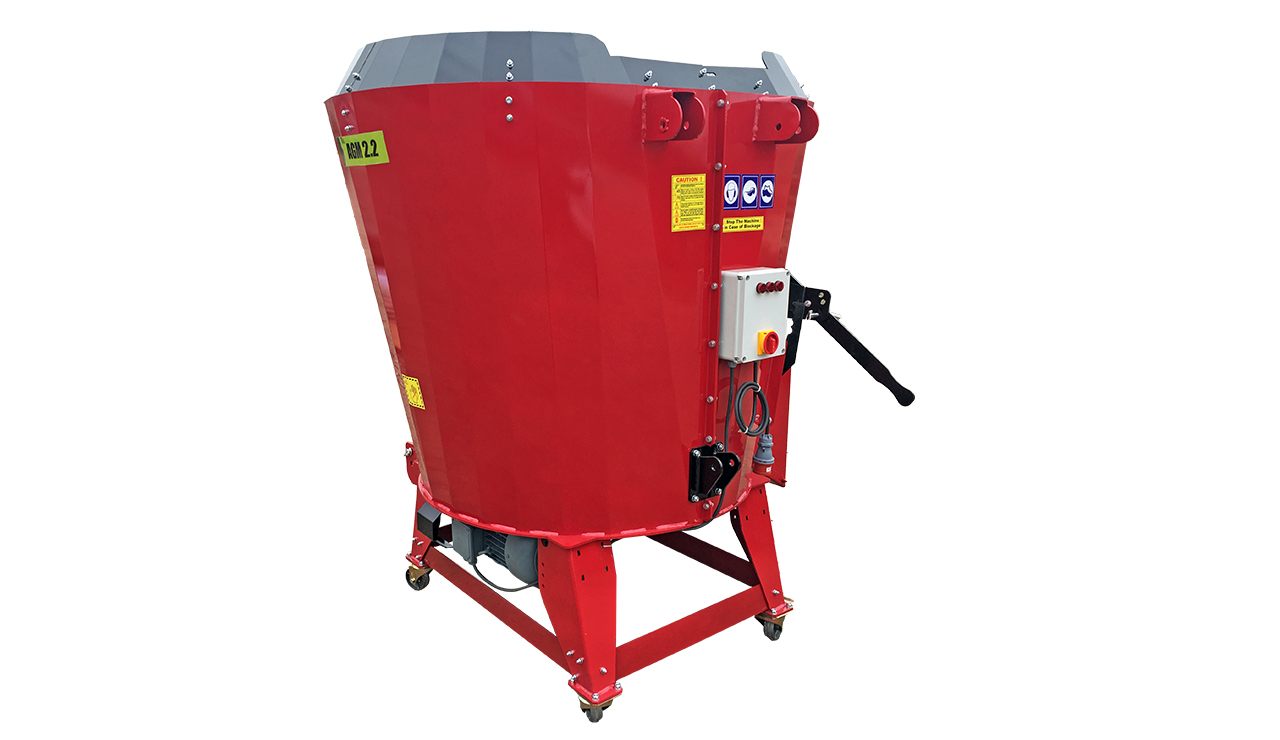

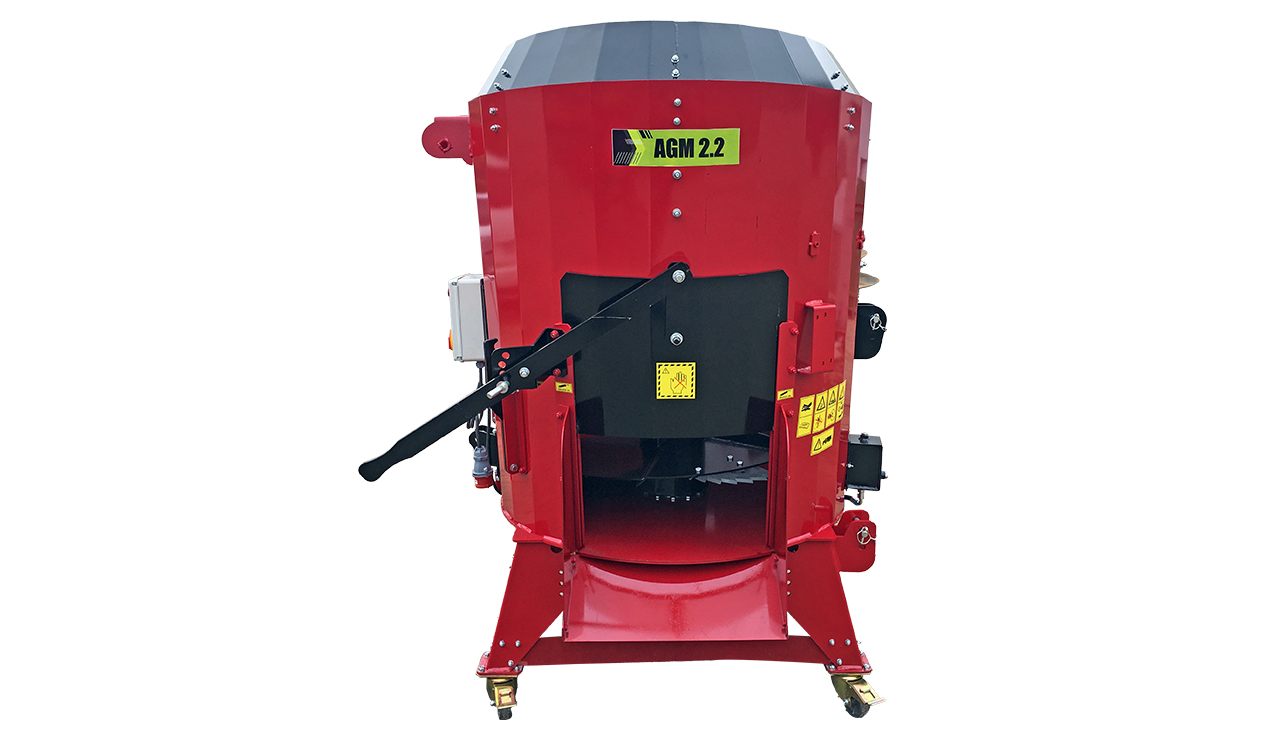

Discharge Conveyor Belt are optional sizes, The Stationary Small Feed Mixer can be designed as your demand for a perfect USE. Rear Loader Bucket, Self Hydraulic System, Weighing Scale, Frequency Converter ( Inverter ) Options will give you more and more Practical and an effective USE.
MINI BUT OPTIONAL
| MODEL | AGM 0.75 m3 | AGM 1.0 m3 | AGM 1.2 m3 | AGM 1.7 m3 | AGM 2.2 m3 | AGM 2.7 m3 | AGM 3 m3 | AGM 3.5 m3 |
|---|---|---|---|---|---|---|---|---|
| Capacity | 0.75 m2 | 1.0 m2 | 1.2 m3 | 1.7 m3 | 2.2 m3 | 2.7 m³ | 3.0 m³ | 3.5 m³ |
| Lenght | 800 mm | 100 mm | 1250 mm | 1500 mm | 1750 mm | 3000 mm | 3500 mm | 3500 mm |
| Height | 1000 mm | 1300 mm | 1500 mm | 1770 mm | 1850 mm | 1800 mm | 1900 mm | 2000 mm |
| Width | 800 mm | 1000 mm | 1250 mm | 1500 mm | 1750 mm | 1600 mm | 1600 mm | 1700 mm |
| Weight | 250 Kg | 250 Kg | 350 Kg | 450 Kg | 650 Kg | 1400 Kg | 1600 Kg | 1800 Kg |
| Electric Motor ( Option ) | "220 Volt / Monophase 3 Kw / 4 Hp" | "220 Volt / Monophase 3 Kw / 4 Hp" | "380 Volt / 3 Phase 4 Kw - 5 Hp" | "380 Volt / 3 Phase 5.5 Kw - 7 Hp" | "380 Volt / 3 Phase 7.5 Kw - 10 Hp" | "380 Volt / 3 Phase 11 Kw - 15 Hp" | "380 Volt / 3 Phase 11 Kw - 15 Hp" | "380 Volt / 3 Phase 11 Kw - 15 Hp" |
| Electric Motor Brand | Volt / Local | Volt / Local | Volt / Local | Volt / Local | Volt / Local | Volt / Local | Volt / Local | Volt / Local |
| Electric Motor Tranmission to Auger | Direct Connection | Direct Connection | By V Belt | By V Belt | By V Belt | By V Belt | By V Belt | By V Belt |
| Electric Panel | Over Load Protection | Over Load Protection | Over Load Protection | Over Load Protection | Over Load Protection | Over Load Protection | Over Load Protection | Over Load Protection |
| Gearbox | Ermaksan ( Local ) | Ermaksan ( Local ) | Ermaksan ( Local ) | Ermaksan ( Local ) | Ermaksan ( Local ) | Ermaksan ( Local ) | Ermaksan ( Local ) | Ermaksan ( Local ) |
| Bottom Metal Tickness | 8 mm | 8 mm | 8 mm | 8 mm | 10 mm | 12 mm | 12 mm | 12 mm |
| Bottom Side Metal Tickness | 6 mm | 6 mm | 6 mm | 6 mm | 8 mm | 8 mm | 8 mm | 8 mm |
| Side Metal Tickness | 4 mm | 4 mm | 4 mm | 4 mm | 4 mm | 4 mm | 4 mm | 4 mm |
| Auger Type | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical |
| Auger Quantity | 1 Piece | 1 Piece | 1 Piece | 1 Piece | 1 Piece | 1 Piece | 1 Piece | 1 Piece |
| Blade Quantity | 5 Pieces | 5 Pieces | 5 Pieces | 5 Pieces | 5 Pieces | 6 Pieces | 6 Pieces | 6 Pieces |
| Hydraulic Unit ( Option ) | Without | Without | Without | Without | Self Hydraulic | Self Hydraulic | Self Hydraulic | Self Hydraulic |
| Hydraulic Action | Without | Without | Without | Without | By Manuel Command | By Manuel Command | By Manuel Command | By Manuel Command |
| Discharging ( Option ) | Manuel | Manuel | Manuel | Manuel | From Right Side | From Right Side | From Right Side | From Right Side |
| Discharging Door Lenght | 60 Cm | 60 Cm | 60 Cm | 60 Cm | 60 Cm | 70 cm | 70 cm | 70 cm |
| Wheels Quantity | Without | Without | Without | Without | Without | 2 Pieces | 2 Pieces | 2 Pieces |
| Wheels Type | Without | Without | Without | Without | Without | 185/65-R15 - 2 Pcs. | 185/65-R15 - 2 Pcs. | 185/65-R15 - 2 Pcs. |
| Chassis | Fixed on Feet | Fixed on Feet | Fixed on Feet | Fixed on Feet | Fixed on Feet | Standart | Standart | Standart |
| Back Loader Bucket ( Option ) | Without | Without | Without | Without | ( Option ) | Include | Include | Include |
| Shaft ( Kardan ) | Include | Include | Include | Include | Include | Include | Include | Include |
